Instrument Transformer

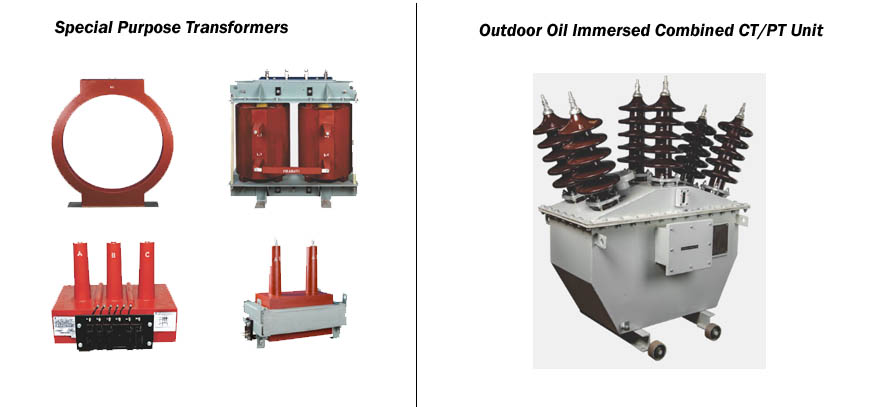

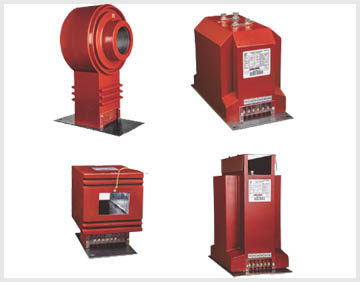

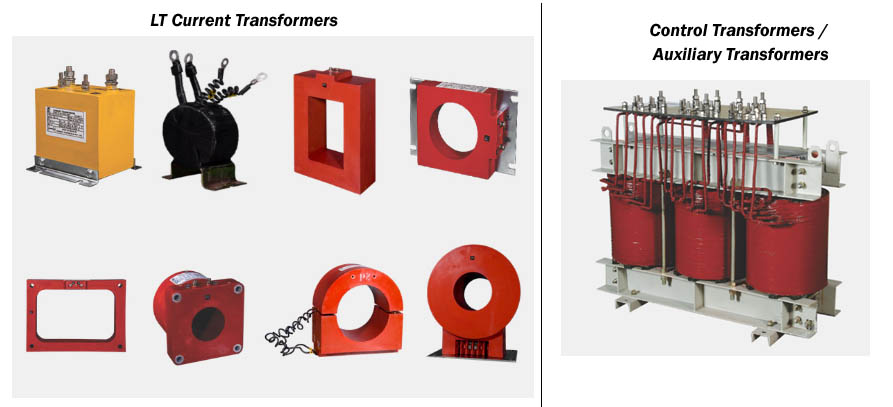

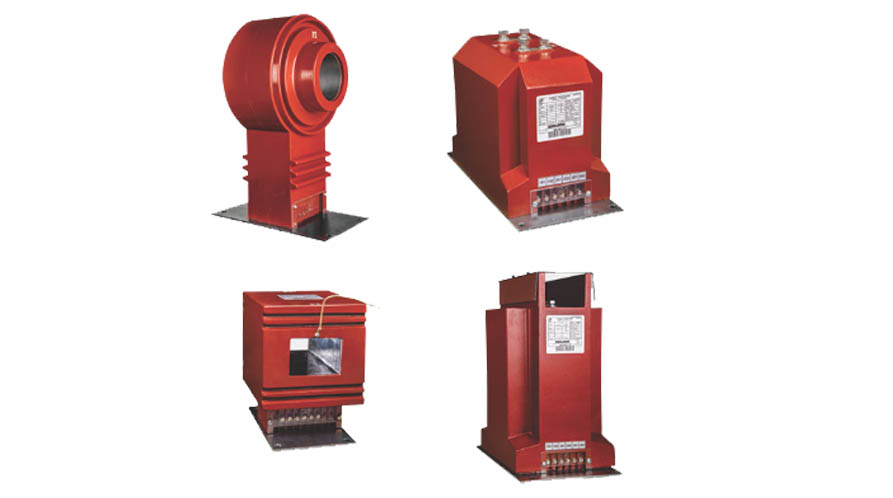

Product Name: Instrument Transformer - MV and LT Current Transformers

Current Transformers (CT) are used for current metering and protection in high voltage network systems. They transform the high current on the high voltage side into low current (1 or 5 A) adequate to be processed in measuring and protection instruments (secondary equipment, such as relays and recorders). A current transformer also isolates the measuring instruments from the high voltage of the monitored circuit. Current transformers are commonly used for metering and protection in the electrical power industry.



Additional Information:

Item Code: MV and LT Current Transformers

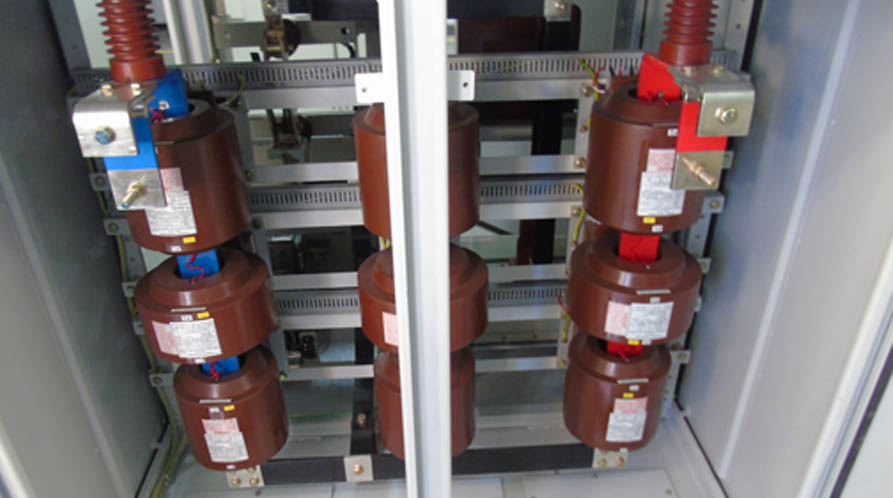

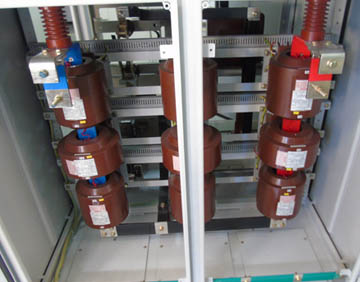

Product Name: Instrument Transformer - Current Transformer Panel

Additional Information:

Item Code: Current Transformer

Panel

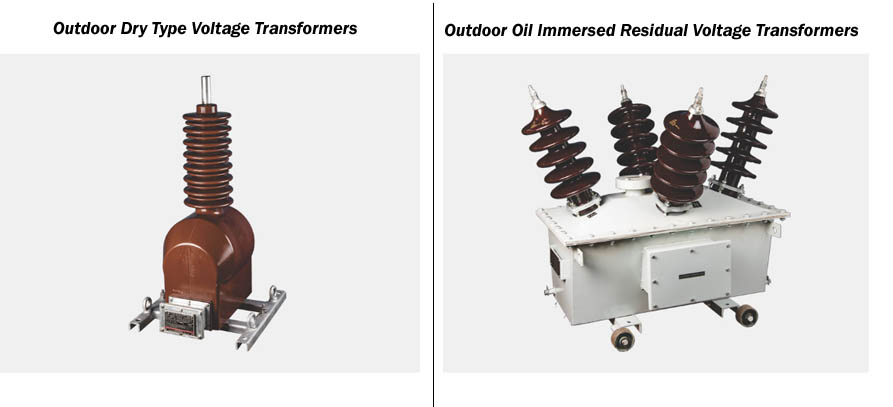

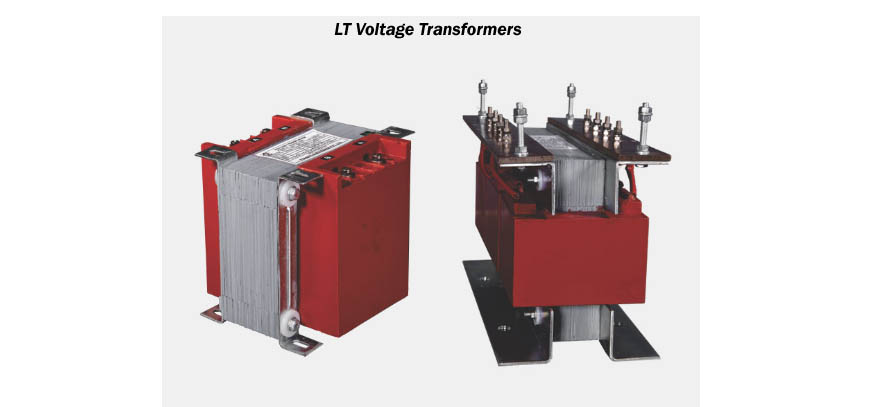

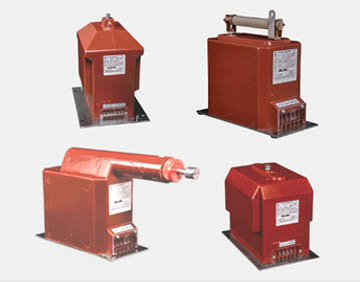

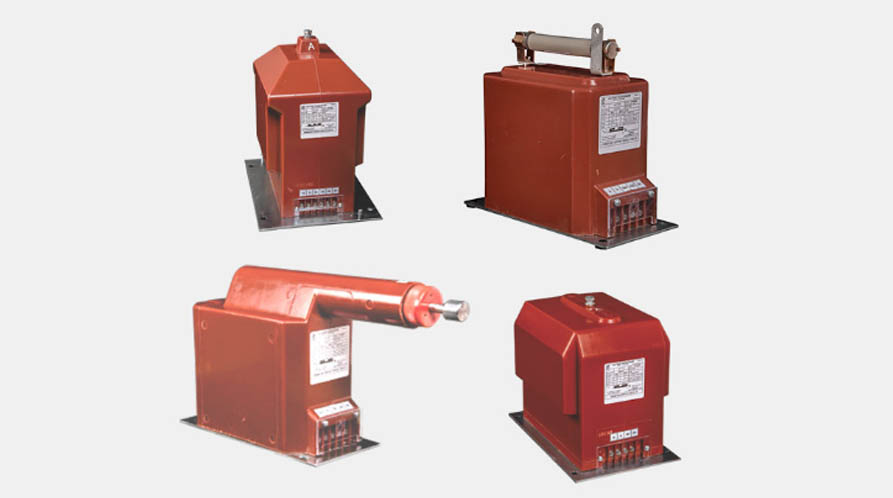

Product Name: Instrument Transformer - Voltage Transformer

Voltage transformers (VT), also called potential transformers (PT), are a parallel connected type of instrument transformer. They are designed to present negligible load to the supply being measured and have an accurate voltage ratio and phase relationship to enable accurate secondary connected metering.

Additional Information:

Item Code: Voltage Transformer

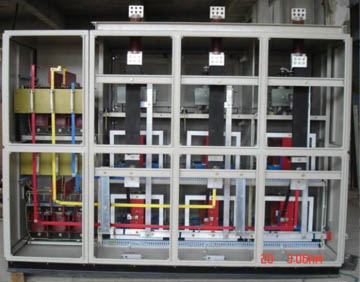

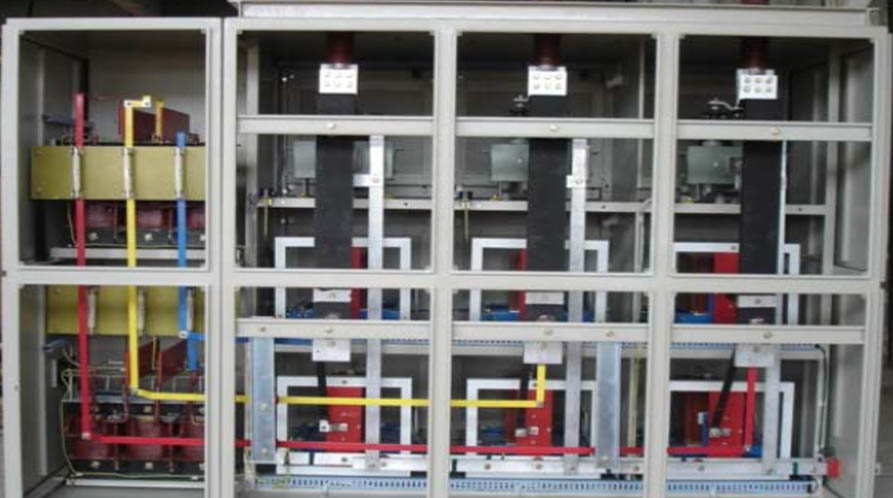

Product Name: Instrument Transformer - Voltage Transformer Panel

Additional Information:

Item Code: Voltage Transformer , Potential Transformer with Drawout
