NGR & NGTR

Product Name: 33KV, 22KV, 6.9KV, 3.3KV, NGR PANEL

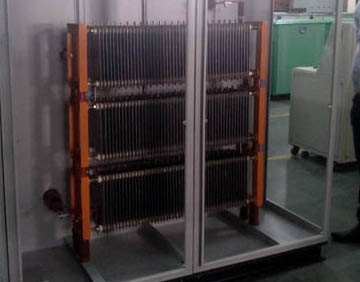

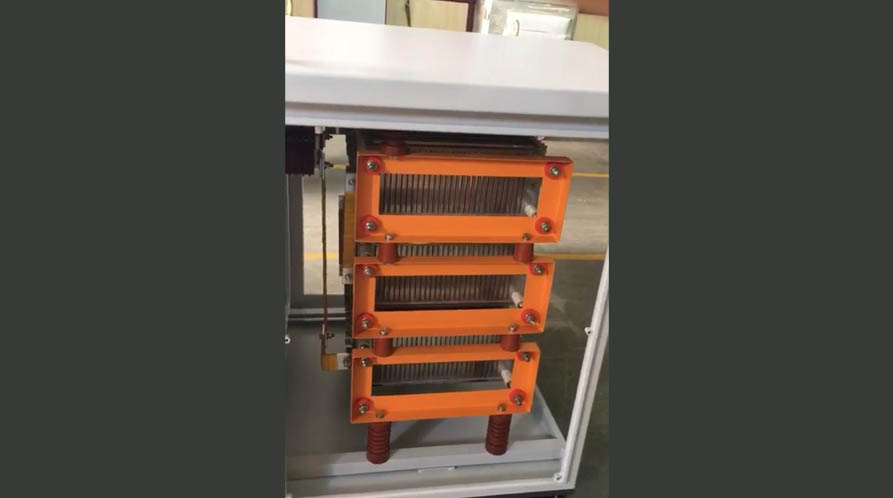

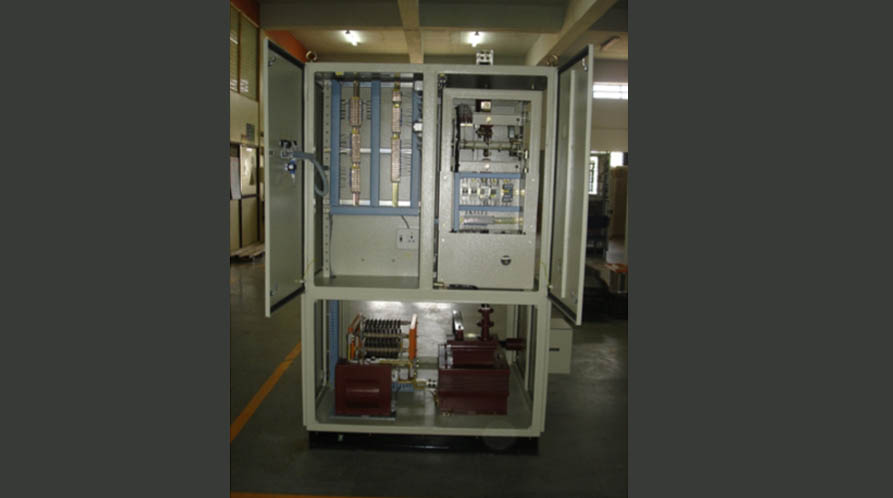

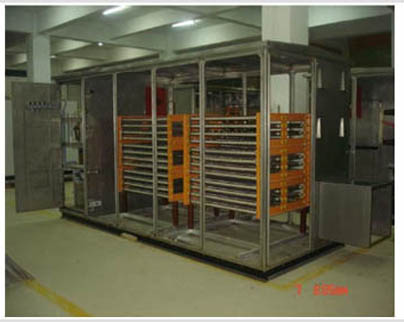

NGR

Neutral grounding resistors are provided in medium and low voltage distribution network to protect power transformers and generators currents in the event of earth fault. The NGR is rated for continuous duty with maximum temperature rise and prevent transient over voltages and gives system stability under fault conditions.

Additional Information:

Item Code: 33KV, 22KV, 6.9KV, 3.3KV, NGR PANEL

Product Name: 11KV, NGTR PANEL

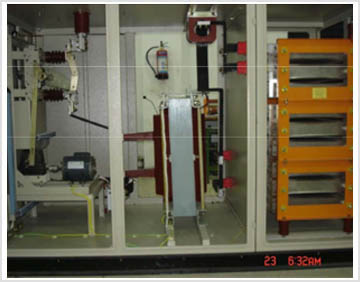

NGTR

Neutral grounding transformer and resistors is typically provided for generator neutral grounding or for MV system grounding. The transformer used is a dry type transformer with single phase at the primary(MV) rated voltage to the system phase to neutral voltage and the secondary(LV) rated voltage either 110V or 240V. The resistor is provided across the secondary side of the transformer to have a reduced ohmic value tre three-phase electric power systems to provide a ground path to either an ungrounded wye or a deltaconnected system. This is used along with a NGR to ground the transformer to earth

Additional Information:

Item Code: 11KV, NGTR PANEL
